M6_A_4005 - Assy Cover Print Head
Version 2 (26-06-2025)
64 grams
2.93 hours
| Part Number | Name | Image | Quantity | Color | Infill(%) | Weight(g) | Print Time(h) | Print Material | Version | Last Updated |
|---|---|---|---|---|---|---|---|---|---|---|
| M6_P_0063 | Print head front cover |  |
1 | Blue | 30 % | 58 g | 2.4 hours | PETG | 3 | 2024-09-05 |

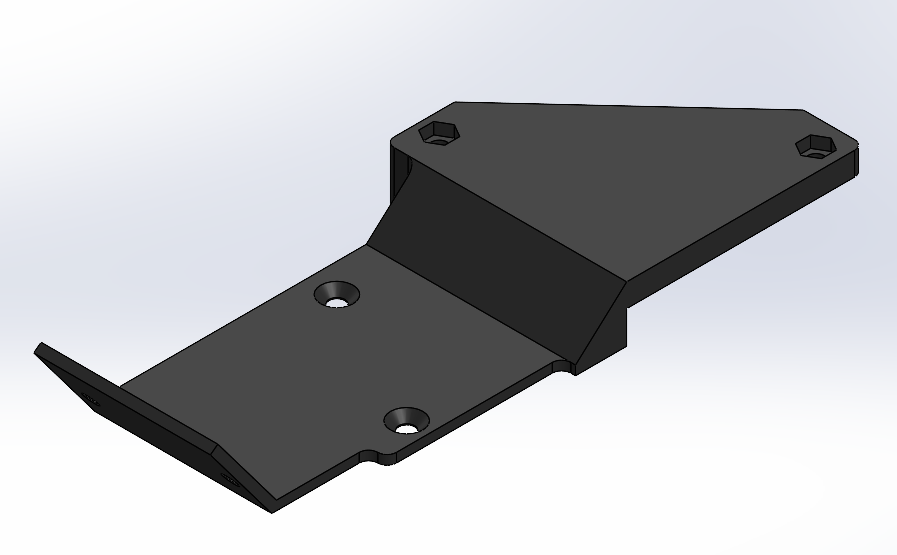

| M6_P_0064 | Layer fan duct cover |  |
1 | Black | 100 % | 6 g | 0.53 hours | PETG | 5 | 2025-06-25 |
| Part Number | Name | Image | Quantity | Version | Last Updated |
|---|---|---|---|---|---|
| C_0090 | M3x5x4 threaded heat set insert |  |
4 | 6 | 2024-10-03 |
| Part Number | Name | Image | Quantity | Screw head | Metric | Length | Version | Last Updated |
|---|---|---|---|---|---|---|---|---|
| Nut M3 | Nut M3 |  |
2 | Nut | M3 | 2 mm | 1 | 2024-09-06 |
| M3x25 Conic | M3 x 25mm ISO10642 Conic |  |
2 | Conic | M3 | 25 mm | 1 | 2024-09-02 |
| M3x8 Conic | M3 x 8mm ISO10642 Conic |  |
4 | Conic | M3 | 8 mm | 1 | 2025-06-25 |
| Part Number | Name | Image | Quantity | Connector start | Connector end | Cable | Length | Version | Last Updated |
|---|---|---|---|---|---|---|---|---|---|
| C_0019 | Air blower fan 5015 24V |  |
1 | mm | 2 | 2024-10-05 |
